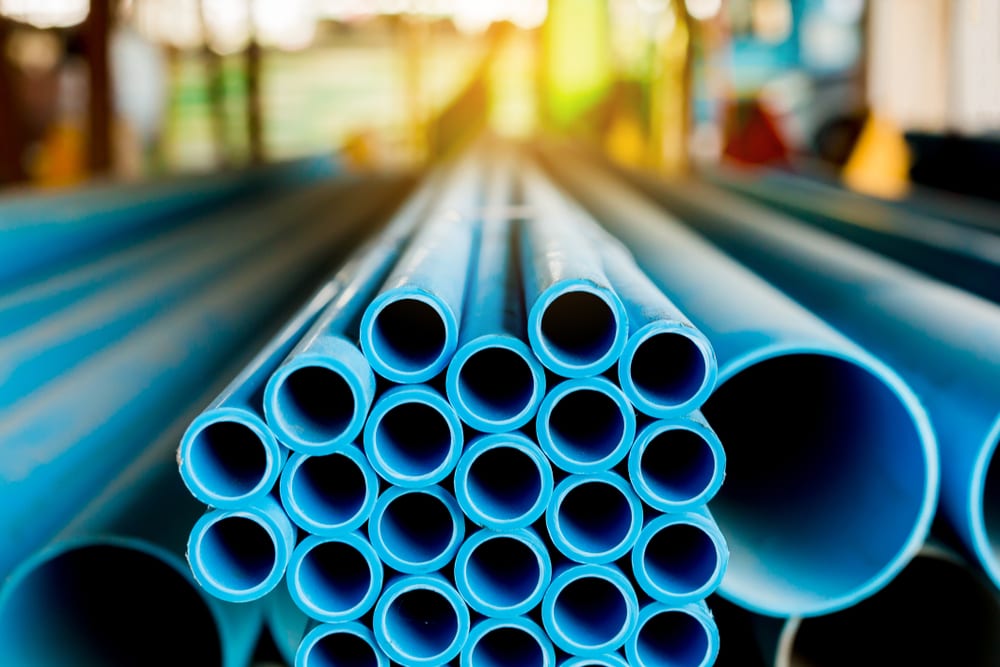

PVC - Waterline pipes
Our PVC water line pipes are ideal choice for drinking and irrigation since it is virtually immune to chemical corrosion, bio-film contamination and negligible low molecular weight substance migration onto the water and has a lasting life at least 100+ years of usage and has far lower water main break rates compared to other non- plastic material piping’s. below are our products
| DIMENSION AND PRESSURE RATING CHART FOR PVC PIPES | |||||
| OD | PRESSURE | ||||
| In inch | In Inch | 4 kgf/cm2 | 6 kgf/cm2 | 10 kgf/cm2 | 15 kgf/cm2 |
| min | max | min | max | min | max | min | max | ||
| 1/2ʺ | 20 | – | – | – | – | 1.10 | 1.50 | 2.80 | 3.30 |
| 3/4ʺ | 25 | – | – | – | – | 1.40 | 1.80 | 2.90 | 3.30 |
| 1ʺ | 32 | – | – | – | – | 1.80 | 2.20 | 3.40 | 3.70 |
| 1 1/4ʺ | 40 | – | – | 1.40 | 1.80 | – | – | 3.60 | 4.20 |
| 1 ½ ʺ | 50 | – | – | 1.70 | 2.10 | – | – | 3.70 | 4.30 |
| 2ʺ | 63 | 1.50 | 1.90 | 2.20 | 2.70 | – | – | – | – |
| 2½ ʺ | 75 | 1.80 | 2.20 | 2.60 | 3.10 | – | – | – | – |
| 3ʺ | 90 | 2.10 | 2.60 | 3.10 | 3.70 | – | – | – | – |
| 4ʺ | 110 | 2.50 | 3.00 | 3.70 | 4.30 | – | – | – | – |
| 5ʺ | 140 | 3.20 | 3.80 | 4.80 | 5.50 | – | – | – | – |
| 6ʺ | 160 | 3.70 | 4.30 | 5.40 | 6.20 | – | – | – | – |
| 7ʺ | 180 | 4.20 | 4.90 | 6.10 | 7.10 | – | – | – | – |
| 8ʺ | 200 | 4.60 | 5.30 | 6.80 | 7.90 | – | – | – | – |
| 9ʺ | 225 | 5.20 | 6.00 | 7.60 | 8.80 | – | – | – | – |
| 10ʺ | 250 | 5.70 | 6.50 | 8.50 | 9.80 | – | – | – | – |
| 12ʺ | 315 | 7.20 | 8.30 | 10.70 | 12.40 | – | – | – | – |
